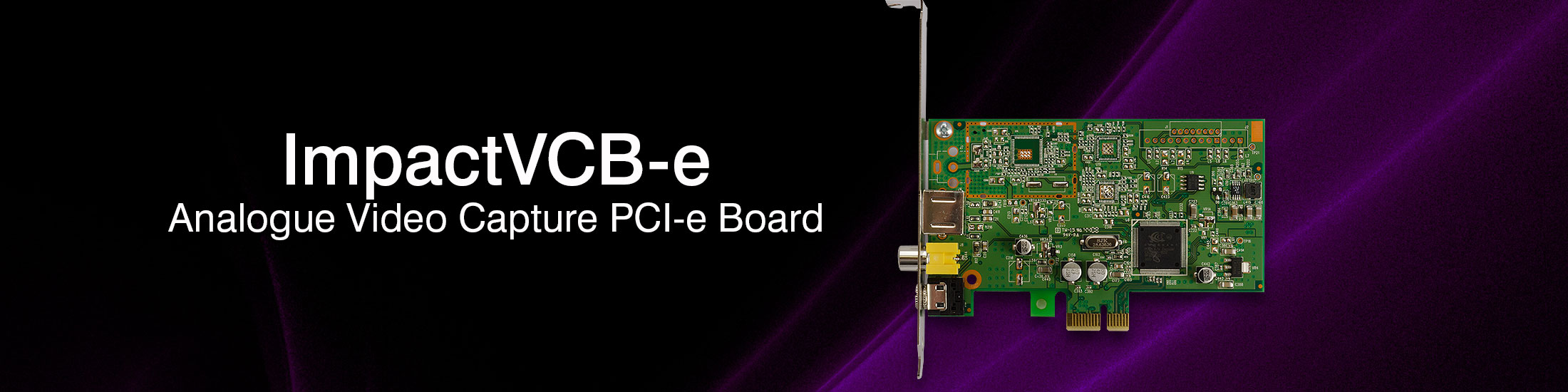

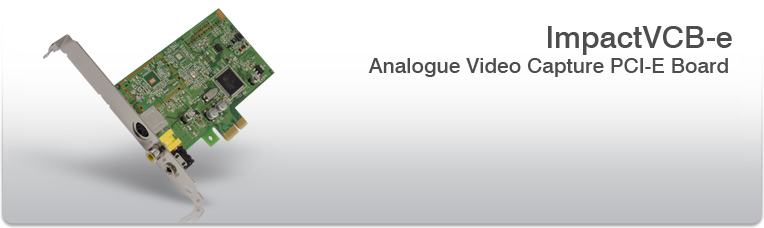

ImpactVCB-e
Features
- Plug & Play PCI-Express card for easy installation
- Analogue Video Capture resolution: 720 x 576 bei 25 fps (PAL); 720 x 480 bei 30 fps (NTSC)
- Supported video formats: PAL, PAL SECAM, NTSC
- Half heigh
- Composite video, S-Video and audio inputs
- Conexant cx23885 based on PCI Express broadcast audio/video decoder
Connections
- 1x S-Video input (4-pin DIN)
- 1x Composite Video input (RCA connector)
- 1x Stereo Audio input (3.5 mm mini jack)
Technical specifications
- Connections:
- 1x S-Video input (4-pin DIN)
- 1x Composite Video input (RCA connector)
- 1x Stereo Audio input (3.5 mm mini jack)

System Requirements
- Minimum processor recommended:
- 2.0 GHz Intel® P4 or equivalent.
- Microsoft® Windows® 10, 8, Windows 7, Windows Vista with 1 GB RAM or Windows XP Service Pack 3 with 512 MB RAM
- Available PCI Express X1 slot (can be used in x4/x8/x16 slots).
Supported Drivers/Software
- Hauppauge WinTV v8 for Windows 10 (32 and 64-bit)
Model numbers:
model 01427: ImpactVCB-e with English manual
Included in the box
- Impact-VCB PCI-Express card
- Download card for the WinTV v8.5 application
