PCTV picoStick

The World’s Smallest Digital TV Tuner

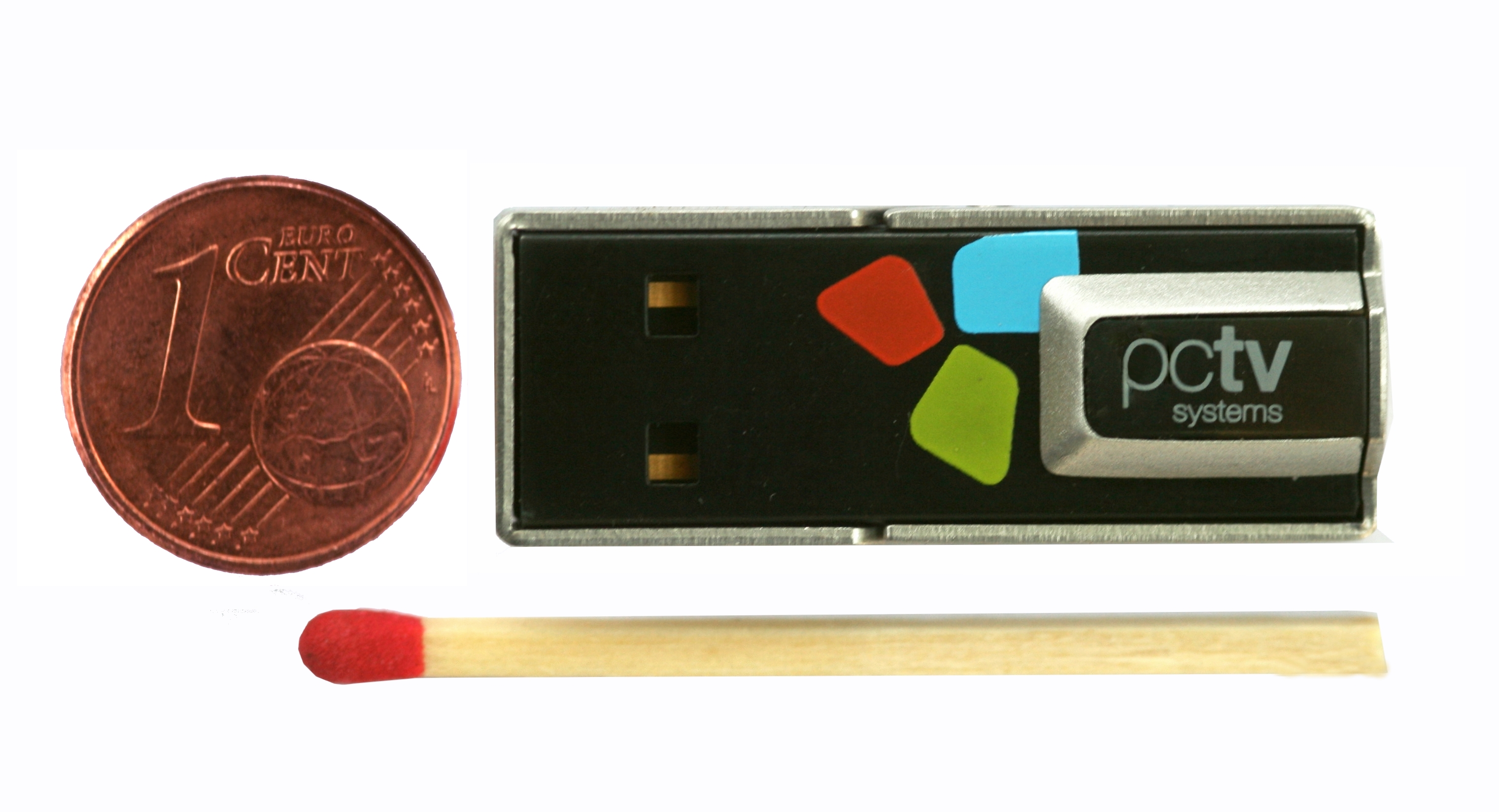

PCTV picoStick (74e) is a revolutionary small DVB-T USB tuner for Windows PCs. Thanks to an all-new integrated chip technology, it “brings DVB-T reception to new dimensions”. With a length of 35mm and a width of 12mm the hogh-grade steel enclosure is significantly smaller than all other TV USB dongles in the market place.

Despite the extreme miniaturization, the device provides high sensitivity and allows perfect TV reception also in areas with lower signal quality. Its uniquely designed metal case with its protective clamp makes it a stylish accessory for modern, small laptops, netbook and nettop PCs.

Never miss your favorite TV show again!

The included all-new TVCenter 6 software makes it easy to watch, time shift and record live TV. With its newly designed user interface the PCTV picoStick integrates smoothly into Windows® 8 and Windows 7. It enables watching TV and recordings in full-screen or in a freely scalable window while working with other software.

PCTV picoStick comes with a new telescopic mini rod-antenna kit. The antenna stick can either be attached to the magnetic base or – in areas with good DVB-T signal – directly connected to the antenna input of PCTV picoStick.

PCTV picoStick Funktionen

  • Ultra-small and stylish stainless steel enclosure
  • Perfect DVB-T reception
  • Supports H.264 HDTV over DVB-T2
  • Integrated folding clamp to protect the USB connector – never gets lost
  • Doesn’t block neighbouring USB ports
  • Includes new telescopic mini rod antenna kit
  • USB powered. Very low power consumption -saves laptop battery power
  • Trim and edit recordings with the included video editing software
  • Compatible with Windows® Media Center

All-new TVCenter software

  • Watch TV in full-screen or a freely scalable window – with a completely new user interface
  • Use time shift to stop and rewind live TV
  • Watch and record to your hard drive - without any quality loss
  • Optimized software to run smoothly even on netbooks
  • Integrated EPG and ultra-fast Teletext (where available)

PCTV picoStick

System Requirements

  • Microsoft® Windows® 8 or 7 or Windows® Vista with latest Service Pack and 512MB RAM (1GB recommended)
  • or Windows XP (32 bits) with latest Service Pack and 256 MB RAM (512 MB recommended)
  • Intel® Pentium® 4 2.0 GHz, Pentium® M 1.3 GHz, Atom® 1.6GHz, AMD® Athlon® XP or equivalent 1
  • Graphics /sound controllers with support for DirectX® 9 or higher
  • Free USB 2.0 port
  • Hard disk with minimum 5 GB free space (for Timeshifting and TV recordings)
  • DVD drive (for the software installation)
  • Optional: Internet connection for software updates and activations


  • TV standard: Digital terrestrial DVB-T (MPEG-2,  MPEG-4 AVC / H.264)
  • Tuning range 174~862 MHz
  • Channel bandwidth 7, 8 MHz
  • Antenna input: MCX, 75 Ohm
  • Interface: USB 2.0 (Hi-Speed)

TV-Recording Formats

  • MPEG-2 transport stream
  • MPEG-4 H.264 (AVC) transport stream

Package Contents

  • USB 2.0 TV tuner stick for DVB-T (74e)
  • 2-part mini rod telescopic antenna
  • MCX to IEC adapter
  • USB extension cable
  • DVD with TVCenter 6, video editing application, drivers and documentation
  • Quick start guide
