WinTV-HVR-5525

6-in-1 HD TV card

WinTV-HVR-5525 All format Freeview and Freesat TV receiver

  • Watch and record Freeview, Freesat and analogue TV formats to your PCs disk using WinTV v10 HD:
    • Freesat: High Definition digital satellite DVB-S2.
    • Freeview HD: digital terrestrial DVB-T2.
    • Freeview: digital terrestrial DVB-T.
    • Digital cable TV: DVB-C (check with your local cable operator to see if free DVB-C is available in your area).
    • Analogue PAL/SECAM TV.
  • Record your personal videos (using the A/V inputs) to disk in MPEG-2 format.
  • Schedule your TV recordings with WinTV v10 HD's built-in scheduler.
  • Listen and record digital radio* in original quality MP2.
  • Includes Hauppauge remote control for easy operation of WinTV v10 functions.

High Definition 6-in-1 TV tuner for your PC!
For High Definition DVB-S2 Satellite, High Definition DVB-T2, DVB-S, DVB-T, DVB-C and Analogue television

WinTV-HVR-5525: the best 6-in-1 TV receiver for your PC! WinTV-HVR-5525 is a six-in-one TV tuner which can receive four different television formats: analogue PAL/SECAM TV, Freeview HD digital terrestrial DVB-T-2, Freeview digital terrestrial DVB-T, Freesat HD digital satellite DVB-S2 and standard definition DVB-S2 and 'free' digital cable TV DVB-C. Watch and record analogue TV, digital Freeview and High Definition digital satellite TV, all from one PCI-e board!

Digital TV now comes in High Definition. High Definition Freeview HD (DVB-T2) and Freesat DVB-S2 satellite TV brings the ultimate TV experience to the PC screen. HD gives you the best quality video and CD quality audio. Record movies in the full HD format to your PCs hard disk! But if you cannot currently receive high definition digital satellite TV, the WinTV-HVR-5525 can still be used to watch and record analogue TV, Freeview or standard free-to-air digital satellite TV.

Freeview DVB-T digital terrestrial TV & radio on your PC! Watch more than 50 Freeview digital terrestrial TV broadcasts and digital terrestrial radio on your PC, with a simple rooftop aerial*.

Analogue PAL/SECAM TV on your PC screen. Connect WinTV-HVR-5500 to a rooftop aerial and you can watch and record TV programmes to disk. Record your TV shows (or your home videos) using 'Good, Better or Best' MPEG-2 compression. You can also receive analogue teletext.

WinTV-HVR-5525 makes the ultimate Digital Video Recorder: Record analogue, DVB-T2, DVB-T, DVB-C, DVB-S2 or DVB-S TV in high quality MPEG-2! Use WinTV v10 HD's TV scheduler to automatically record your favourite TV shows, on a daily, weekly or once only schedule. Or use the built in Electronic Program Guide for digital TV to have an overview of all up coming programmes!

Hauppauge's remote control makes the WinTV-HVR-5525 easy to use - Control the Media Center's functions of WinTV v10 with the ergonomic remote control. Change Channels, adjust audio volume, start recordings, play music, start a slide show, all from the comfort of your living room couch!

Notes:

  • For Freeview HD and Freeview Digital Terrestrial reception, a high gain aerial is recommended. The WinTV-HVR-5525 uses a rooftop aerial for DVB-T reception in the same way that most people currently receive their analogue television programmes. Some viewers will need to replace their aerials to receive digital transmissions if the installation is old or in poor condition. Digital Terrestrial coverage is improving all the time as digital terrestrial television transmitters are continuously being updated. However it may take some time for coverage to reach particular areas of the country. To check if you receive a digital transmission in your area, input your Post Code at: http://www.digitaluk.co.uk/
  • DVB-S/DVB-S2/DVB-T Radio is not DAB Radio.
  • For Digital Satellite reception, your satellite dish must be aimed at a satellite which is transmitting free-to-air Sat TV. For example, Astra and Eutelsat provide free-to-air satellite channels.
  • Some HD Digital Satellite channels are available on Astra and Eutelsat (via DVB-S2 transmission).
  • To use the WinTV-HVR-5525 for TV with the Windows XP Media Center application (DVB-T/Analogue, DVB-S will also work but will require a patch from our website) a Media Center certified DVD or MPEG-2 software decoder is required. If you are building a Media Center PC, refer Microsoft's web site for a list of Media Center certified DVD decoders. The Windows Media Center application is included with Windows 8 Media Center package, Windows 7, Windows XP Media Center, Windows Vista Ultimate and Windows Vista Home Premium editions only.

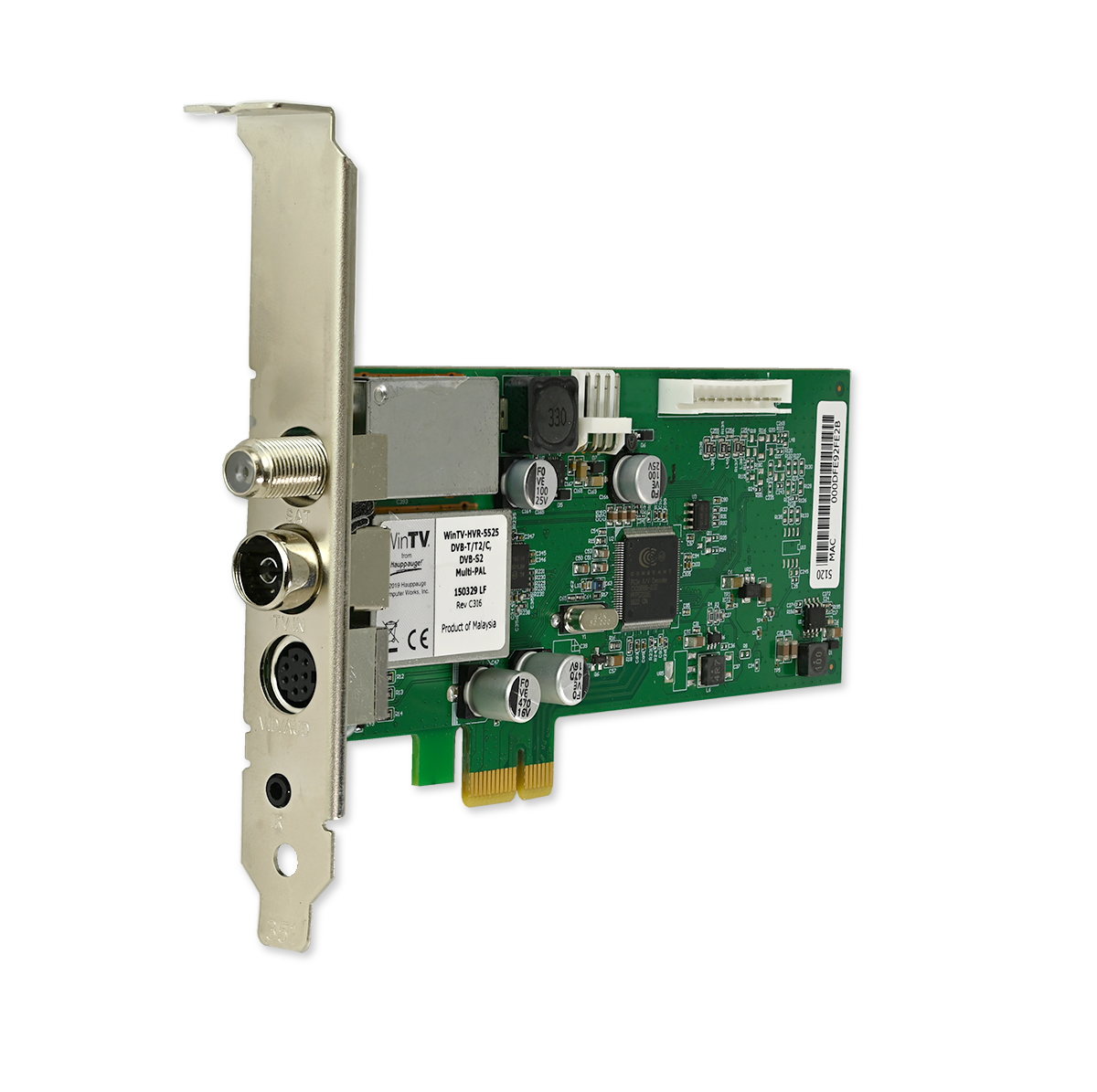

WinTV-HVR-5525 TV tuner kit

WinTV-HVR-5525

WinTV-HVR-5525

click to enlarge

6-in-1 TV receiver in one half height PCIe board!
Satellite plus DVB-T, DVB-T2, DVB-Cand analogue TV

  • Receive 6 different TV and video formats:
    • Freeview HD (DVB-T2)
    • Freeview (DVB-T)
    • Freesat (DVB-S/S2)
    • Digital cable DVB-C
    • PAL TV
    • Analogue video from a VCR, cable box, PAL camera, etc.
  • Watch and record High Definition Freesat digital satellite (DVB-S and DVB-S2), Freeview digital HD TV (DVB-T2), Freeview (DVB-T)digital cable TV (DVB-C) in the original digital TV format and quality.
  • Now includes WinTV v10 HD application for High Definition TV viewing and recording!
  • Includes Hauppauge remote control for WinTV v10
  • Fits in both half height and full height chassis. Half height board with a separate full height bracket included

Freesat Hi-definition Satellite DVB-S2 and DVB-S features:

  • Freesat Free-to-air digital satellite receiver (DVB-S and DVB-S2)
  • Record satellite TV programmes to disk in their original digital quality
  • DiSEqC 1.0 supported

Freeview HD DVB-T2 features:

  • Freeview high definition terrestrial DVB-T2 receiver
  • Record Freeview HD programmes to disk in the original high quality format

Freeview DVB-T features:

  • Freeview terrestrial DVB-T receiver.
  • Record Freeview programmes to disk in the original digital TV format
  • Supports DVB radio

DVB-C digital cable TV features:

  • If you live in an area where digital cable TV is provided without encryption:
    • Watch cable TV programmes on your PC, in a window or full screen
    • Record cable TV programmes to disk in the original high quality format

Analogue PAL/SECAM TV features:

  • Record and pause analogue TV to disk using 'Good, Better or Best' MPEG-2 comptression. Teletext and Nicam stereo audio too
  • Listen to FM radio with the built-in FM radio receiver
  • Auxiliary audio/video input for analogue video sources such as camcorders or VCR's

WinTV-HVR-5525 Technical Specifications and System Requirements

TV tuner formats:

DVB-T2
DVB-T
DVB-C
DVB-S and DVB-S2
Analogue PAL TV
FM Radio

Connections:

TV Aerial connection
Satellite connection
S-Video/composite A/V input
3.5mm stereo audio input
IR Remote control receiver connection

check

System Requirements

  • Minimum processor recommended: 2.0 GHz Intel® i3 or faster or equivalent for TV watching.
  • Microsoft® Windows® 11, 10, 8, Windows 7
  • Available PCI Express X1 slot (can be used in x4/x8/x16 slots).
  • Internet connection (for software installation and activation).

Notes:

Premium satellite television is often encrypted. Hauppauge satellite TV receivers are for free-to-air satellite TV and radio only and cannot decode premium satellite TV.

Diseq 1.0 is supported, but not Diseq 1.2

Unicable satellite distribution systems are not supported

Some universal LNBs are supported

Broadband LNBs are not supported

WinTV-HVR-5525 Model numbers

model 01432: WinTV-HVR-5525 kit with remote control, Freeview HD DVB-T2, Freeview DVB-T, Freesat DVB-S / DVB-S2, digital cable DVB-C support, analogue PAL TV and English/German manual

Included in the box

  • WinTV-HVR-5525 half height PCI-e with built-in DVB-S2, DVB-S, DVB-T2, DVB-T, DVB-C, PAL/SECAM TV receivers, FM radio receiver, S-Video, Composite and stereo audio inputs.
  • IR remote control transmitter and battery
  • IR remote control receiver cable
  • Full and half height brackets for mounting in full height / half height chassis
  • WinTV v10 application (download with Activation Code included)
  • Quick Installation Guide
